FITMENT
-
Winch Rope: 1/4 inch (6mm) diameter, 50 feet (15m) length.
-
Fits most ATV/UTV winch drums.
-
Winch Hook: Sized for 3/8" Heavy-duty clevis pin connection.
-
Hook Stopper: Compatible with synthetic or steel cables up to 1/2" diameter.
DESCRIPTION
Product Overview

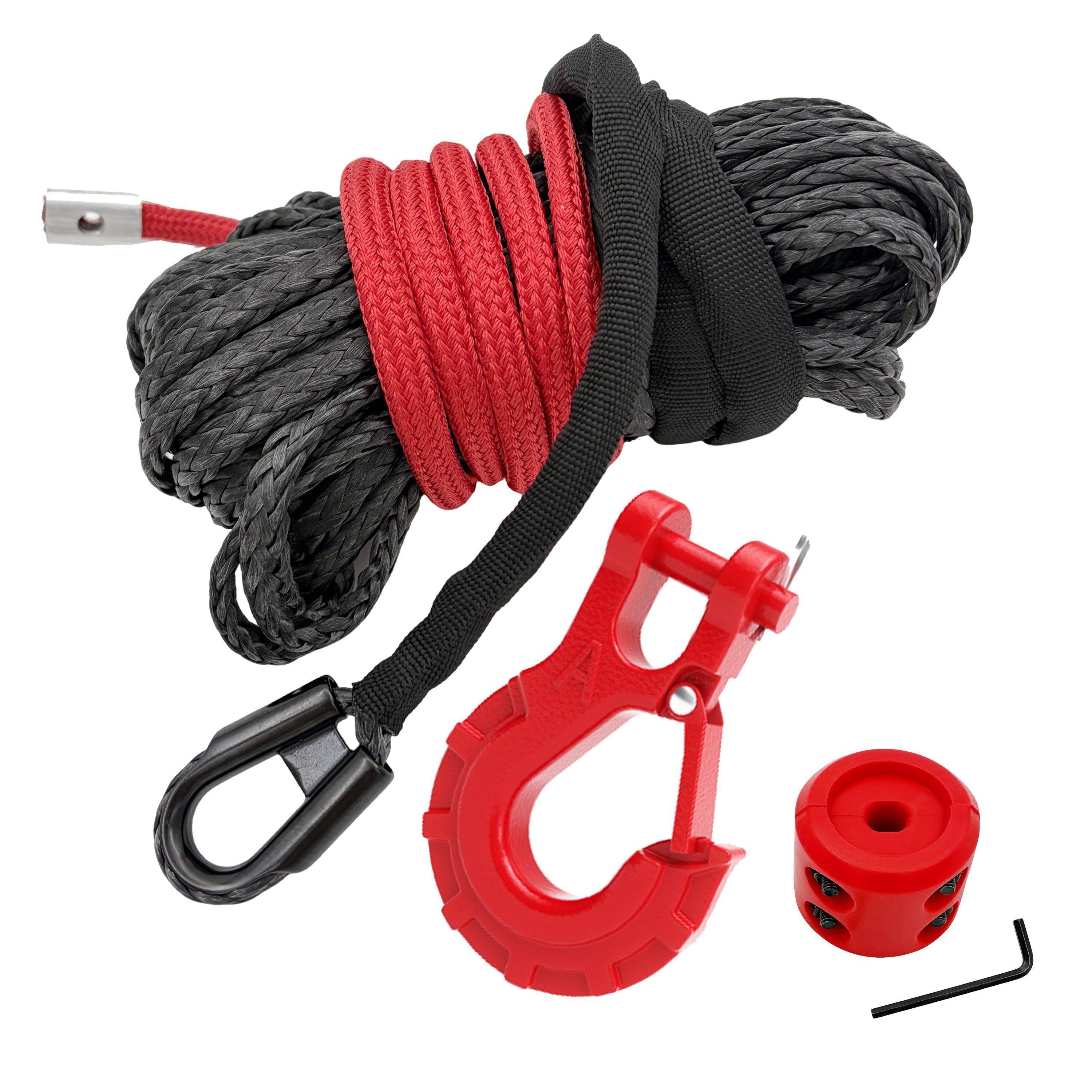

- Most winch kits force you into rigid, pre-packaged bundles. The Build Your Own Winch Kit flips that model, allowing you to pick exactly what your ATV, UTV, or off-road setup needs and skip what it doesn’t. With 7 customizable configurations, you can mix and match components in any combination — from replacing a single worn-out part to building a complete winching system.
- Engineered for extreme off-road recoveries, each component is trail-tested and weather-proofed. The 1/4" x 50ft 12-strand UHMWPE rope delivers 7,400 lbs breaking strength in a lightweight, floatable package that eliminates dangerous wire splinters. It pairs with a 3/8" Grade 80 forged steel hook rated for 33,000 lbs max strength with a spring-loaded safety latch, and a freeze-resistant silicone stopper that absorbs retraction shocks and eliminates fairlead rattle on the trail.
Key Features
- Build your ideal setup from single components to a full kit. Only pay for what you need—replace a worn rope, upgrade a hook, or add a stopper without buying unnecessary hardware.
- Ultra-lightweight and safer than steel cable. It floats in water, won't develop dangerous wire splinters, and features a UV-resistant protective coating.
- Heavy-duty 3/8" drop-forged hook built for extreme loads. Equipped with a spring-loaded safety latch that stays locked under trail vibrations.
- Soft silicone rubber compresses on retrieval to protect your fairlead and winch housing. Stops metal rattle on washboard trails and won't crack in sub-zero freezing temperatures.
- Purpose-Built for ATV/UTV Winches: Compact,Built to handle mud, ice, and harsh trail abuse.
Specifications
| Spec |
Detail |
| Rope Material |
Synthetic Winch Rope with UV-Resistant Coating |
| Rope Size |
1/4" Diameter x 50ft Length |
| Rope Break Strength |
7,400 lbs |
| Hook Material |
3/8" Grade 80 Forged Steel with Powder Coat |
| Hook Max Strength |
33,000 lbs |
| Hook Safety |
Spring-Loaded Safety Latch |
| Stopper Material |
Premium Silicone Rubber |
| Stopper Function |
Shock Absorption, Fairlead Protection |
Safety & Testing
Every hitch component is crafted from high-grade, premium materials and engineered to meet rigorous industry towing safety standards. Our weight and break strength ratings are backed by extensive laboratory load testing to ensure reliable, heavy-duty performance under real-world conditions. Every structural component undergoes strict, multi-stage quality control before leaving our facility to guarantee maximum safety and peace of mind on the road.
FAQ
Q: Which configuration should I choose?
A: The Full Kit (Rope + Hook + Stopper) is the complete setup for a new winch or a full refresh of worn components. If you only need specific parts, select the combination that matches your gap — for example, Rope + Hook if your stopper is still good, or just a replacement Stopper if that’s all that’s worn.
Q: Will this fit my ATV winch?
A: Yes — the 1/4" rope diameter and hook sizing are designed for ATV and UTV winches (typically 2,500-4,500 lb models). For truck winches, you need larger diameter rope with higher break strength. Using undersized gear on a truck winch is dangerous.
Q: Why synthetic rope instead of steel cable?
A: Synthetic rope is lighter, won’t kink, won’t rust, and doesn’t store dangerous kinetic energy if it snaps — it falls to the ground instead of whipping back. It floats in water and won’t develop burrs that cut your hands. The trade-off is that it requires more care around sharp rocks and UV exposure.
Q: How do I install the silicone stopper?
A: Slide the stopper onto the rope before attaching the hook. Position it so the hook rests against the stopper when fully retracted — about 2-3 inches from the fairlead. The stopper compresses on impact and prevents the hook from slamming into the winch housing or fairlead.
Q: Need a snatch block or winch accessories for your recovery kit?
A: Pair this winch kit with a 10-ton snatch block to double your pulling power. For a full recovery setup, add our kinetic recovery rope with soft shackles for vehicle-to-vehicle extractions.
